300-810 Online Practice Questions and Answers
DRAG DROP
Drag and drop the steps from the left into the correct order on the right that describes the flow of presence updates when a user manually sets the presence status in Cisco Jabber. Not all options are used.
Select and Place:
An engineer must configure a test user mailbox in a newly deployed Cisco Unity Express module. Which console command set reflects the correct configuration in this scenario?
A. Option A
B. Option B
C. Option C
D. Option D
Refer to the exhibit.
An organization is moving from on-premise Exchange to Microsoft Office 365 for email and calendaring. The administrator would like to maintain meeting presence functionality in Jabber clients connected to Cisco IM and Presence after this move. Office 365 certificates must be installed to accomplish this.
Which two trust stores should these certificates be uploaded to on Cisco IM and Presence? (Choose two.)
A. cup-xmpp-trust
B. xmpp-fed-trust
C. cup-trust
D. tomcat-trust
E. xmpp-rust
Refer to the exhibit.
An organization is moving from on-premise Exchange to Microsoft Office 365 for email and calendaring. The administrator would like to maintain meeting presence functionality in Jabber clients connected to Cisco IM and Presence after this move. Office 365 certificates must be installed to accomplish this. Which two trust stores should these certificates be uploaded to on Cisco IM and Presence? (Choose two.)
A. cup-xmpp-trust
B. xmpp-fed-trust
C. cup-trust
D. tomcat-trust
E. xmpp-trust

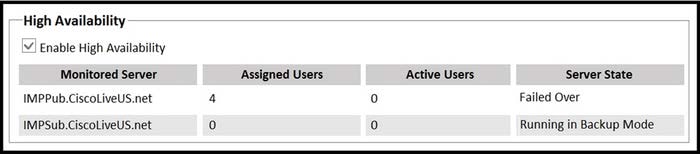

Refer to the exhibit.
User A tries to log in to the Cisco Jabber client, the login works fine, but the user cannot see their self-presence or other users' presence in their contact list. The administrator checks the Cisco IM and Presence Server logs and sees an issue. What is the issue, and bow does It get resolved?
A. The user credentials are incorrect; ask the user to change the credentials.
B. The user is duplicated in another Cisco IM and Presence cluster; unassign the user from the duplicate IM and Presence cluster.
C. Presence has stopped working for the user; unassign and reassign the end-user to Cisco IM and Presence.
D. The Cisco IM and Presence Server has CPU/memory issues; restart the IM and Presence Server.
Which DNS record is used for on-premises service by Jabber clients?
A. _collab-edge._tcp.
B. _cisco-uds._tls.
C. _cisco-uds._tcp.
D.
Which SAML component defines the content of data transferred from an IdP to a service provider?
A. protocol
B. assertion
C. binding
D. profiles
Cisco Unity connection ports on cisco UCM are not registering. An engineer receives a packet capture of the link between the two servers to troubleshoot. In which port will this problem be resolved?
A. TCP 1720
B. TCP 2000
C. TCP 5060
D. TCP 2427
An administrator is implementing a Cisco Unity Connection call management plan for a company and configured the transfer rules that specify how Unity Connection transfers the calls that reach the call handler from the automated attendant. Which call handler setting must be configured to specify whether callers can perform transfers?
A. caller input settings
B. transfer rules
C. call handler owners
D. message settings
Users in a company have access to voice calling and voicemail from desktop phones. As the company transitions to remote work, users are utilizing the Cisco Jabber client through Mobile and Remote Access to access company phone services. Users cannot access voicemail through the Cisco Jabber client, even though voicemail is functioning in the office on the desk phone. Cisco Jabber works with IM and Presence, including calling through Mobile and Remote Access. What is the cause of the issue?
A. Cisco Unity Connection is missing from the internal Cisco UCM mobility profiles.
B. Cisco Unity Connection is missing from the internal Expressway-C clusters.
C. Cisco Unity Connection is missing from the internal Cisco UCM clusters.
D. Cisco Unity Connection is missing from the Expressway-E clusters for external communication.
