H12-891 Online Practice Questions and Answers

In a VXLAN network, traffic is connected to the VXLAN network, and it can also be used to communicate with the same subnet within the same XLAN network

A. NVE interface

B. VXVAN L2 Gateway

C. VXLAN L3 Gateway

D. VLANIF interface

After BGP introduces routes for other protocols, the next hop in the BGP routing table is consistent with the next hop of the introduced routing protocol

A. True

B. False

Regarding the OSPFv3 protocol, what is the error described below?

A. Under the sukugan of a shared router, each OSPFv3 process runs independently

B. Multiple instances can be run in the same OSPFv3 under the same interface

C. Can support running multiple instances on a single link

D. OSPFv3 message header will contain instance IDFu Duan flogging

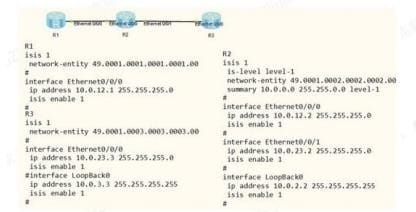

As shown below, what routes will R2 learn?( Single choice questions).

A. R2 can learn the 101.20/24 and 101.30/24 routes.

B. R2 can learn the 101.1.0/24 route.

C. R2 can receive an LSP for R1, but cannot join to the routing table.

D. R2 can learn all routes to R1.

A router Router LSA is shown in the figure, and the error in the following statement is ?

A This router supports external routing ingestion

A. This router is a DR

B. The Router ID of this router is 100121

C. This router has established an adjacency relationship

In which of the following cases, RSTP refreshes the MAC address table?( Multi-select)

A. When the port state transitions from Forwarding to Disking

B. Only when the port state transitions from Listening to Disccarding

C. When a topology change notification is received

D. When the status of a port changes

E. CE when the port state transitions from Disking to Forwarding

To build a loopless Layer 2 network, which of the following schemes is optimal?( Single Choice)

A. Stacking + Link Aggregation

B. TRILL+MSTP

C. ??+MSTP

D. Link Collection + MSTP

When there are multiple redundant links in an IS-IS network, multiple equivalent routes may occur. Regarding equivalent routing within an IS-IS network, which of the following descriptions is wrong?

A. When the number of equivalent routes present in the networking is greater than the number configured by the command, and these routes have the same priority, the next hop device System IlD large routes are preferred for load sharing

B. After you configure the equivalent routing priority, when the IS-S device forwards traffic to the destination segment, it will not use load sharing, but forward the traffic to the next hop with the highest priority

C. For each of the equivalent routes, you can assign a priority, with the highest priority routes preferred and the rest as backup routes

D. If load sharing is configured, traffic is evenly distributed across each link

Which of the following configurations is the correct OSPFv3 route aggregation configuration:

A. [Huawei]ospfv3 1 [Huawei-ospfv3-1J]area 1 [Huawel-ospfv3-1-area-0001]abr-summary fc00:0-0:48 cost 400

B. [Huawei] interface gigabitethernet 1/0/0 [Huawei-GigabitEthernet1/0/0]asbr-surmary fcO0-0:0:48 cost 20

C. [Huawei]ospfv3 1 [Huawei-ospfv3-1]asbr-surmary fcO0-0:0::48 3 cost 20 tag 100

D. [Huawei]ospfv3 1 [Huawei-ospfv3-1]abr-surmary fcO0:0:0:48 cost 400

E. (Huaweijospf3 1 Huawei-ospfv3-1Jarea 1 Huawei-ospfv3-1-area-0001]asbr-sumary fcO0:0:0: 48 cost 20 tag 100

About multi-instance CE (Multi-VPN-Instance CE, MCE). What is the error described below?

A. Users who connect to the same MCE but are not part of a VPN instance cannot access each other

B. The MCE vs. PE direction must have multiple physical links to achieve isolation between different VPN instances

C. MCE-enabled devices can access multiple VPI instances in BGP/RPLS IPVPN applications, reducing user network equipment investment

D. On the MCE device, you need to create their own routing tables for different VPNs and bind to the corresponding interface
