HPE6-A79 Online Practice Questions and Answers

HOTSPOT

A network administrator wants to receive a warning level alarm every time the noise floor rises above -82 dBm on any of the AP radios.

Which alarm definition must the network administrator create to accomplish this?

Hot Area:

A network administrator is in charge of a Mobility Master (MM) ?Mobility Controller (MC) based WLAN. The administrator has deployed an Airwave Management Platform (AMP) server in order to improve the monitoring capabilities and

generate reports and alerts.

The administrator has configured SNMPv3 and Admin credentials on both the MMs and MCs and has created Groups and Folders in the AMP server.

What two additional steps must the administrator do in order to let Airwave monitor the network devices? (Choose two.)

A. Manually add the Active MM and wait for automatic Discovery.

B. Map the AMP's IP address with a mgmt-config profile in the MM.

C. Set the AMP's IP address and Org string as DHCP option 43.

D. Manually add each MM, MC and Access Point in the AMP server.

E. Move "New" devices into a group and folder in Airwave.

A network administrator has racked up a 7210 Mobility Controller (MC) that will be terminating 200+ Aps on a medium-size branch office. Next, the technician cabled the appliance with 4SPF+ Direct Attached Cables (DACs) distributed between two-member switching stack and powered it up.

What must the administrator do next in the MCs to assure maximum wired bandwidth utilization?

A. Map the four physical ports to port channel 0.

B. Disable spanning tree and allocate unique VLANs to each port.

C. Manually set 10Gbps speeds on all ports.

D. Configure the same MSTP region that the switches have.

E. Make all ports trunk interfaces and permit data VLANs.

A joint venture between two companies results in a fully functional WLAN Aruba solution. The network administrator uses the following script to integrate the WLAN solution with two radius servers, radius1 and radius2.

While all users authenticate with [email protected] type of credentials, radius1 has user accounts with the domain name portion. Which additional configuration is required to authenticate corp1.com users with radius1 and corp2 users with radius2?

A. Option A

B. Option B

C. Option C

D. Option D

A software development company has 764 employees who work from home. The company also has small offices located in different cities throughout the world. During working hours, they use RAPs to connect to a datacenter to upload software code as well as interact with databases.

In the past two month, cabling issues have occurred connection to the 7240XM Mobility Controller (MC) that runs ArubaOS 8 and terminates the RAPs. These RAPs disconnect, affecting the users connected to the RAPs. This also causes problems with code uploads and database synchronizations. Therefore, the company decides to add a second 7240XM controller for redundancy.

How should the network administrator deploy both controllers in order to provide the redundancy while preventing failover events from disconnecting users?

A. Connect both controllers with common VLANs, and create an HA fast failover group with public addresses in the internet VLAN.

B. Connect both controllers with common VLANs, and create an L2-connected cluster using public addresses in the internet VLAN.

C. Connect both controllers with different VLANs, and create an L2-connected cluster using public addresses in the internet VLAN.

D. Connect both controllers with common VLANs, and configure LMS/BLMS values equal to public addresses in the internet VLAN.

A network administrator has deployed an Airwave Management Platform (AMP) server and integrated it with a Mobility Master (MM) ?Mobility Controller (MC) based WLAN. The AMP server already has all Aruba Mobility devices including Access Points (APs) in the "UP" devices list.

What are two actions the administrator can execute upon the APs under "Airwave>Devices>Monitor"? (Choose two.)

A. Open the WebUI of the MC where the AP terminates.

B. Re-provision the Access Point.

C. Disable and change the mode of the AP's radios.

D. Invoke MC's show commands for that Access Point.

E. Run Spectrum Analysis locally.

Refer to the exhibit.

A network administrator has a Mobility Master (MM) Mobility Controller (MC) architecture along with the MC in the DMZ for terminating RAPs. The network firewall has been provisioned to allow access to the MC in the DMZ for both UDP 500 and 4500. Then he proceeds to provision an AP as shown in the exhibit.

Which additional configuration steps must the administrator to assure RAPs successfully contact the MC? (Choose two.)

A. Create the RAP1 account in the InternalDB of the MC.

B. Create an IP local pool and PSK at the device node level.

C. Create the RAP1 account in the InternalDB of the MM.

D. Add the RAP1 entry in the CPsec whitelist at the MM level.

E. Create an IP local pool and PSK at the /mm/mynode level.

Refer to the exhibit.

A network administrator completes the initial configuration dialog of the Mobility Controllers (MCs) and they join the Mobility Master (MM) for the first time. After the MM-MC association process, network administrator only creates AP groups, VAPs, and roles. Next, the network administrator proceeds with the configuration of the policies and creates the policy shown in the exhibit.

Which additional steps must be done to make sure this configuration takes effect over the contractor users?

A. Apply the policy in the contractors user role. Enable deep packet inspection. Reload the MCs.

B. Enable firewall visibility. Enable web-content classification. Reload the MCs.

C. Apply the policy in the contractors user role. Enable deep packet inspection.

D. Enable firewall visibility. Enable web-content classification. Reload the MMs.

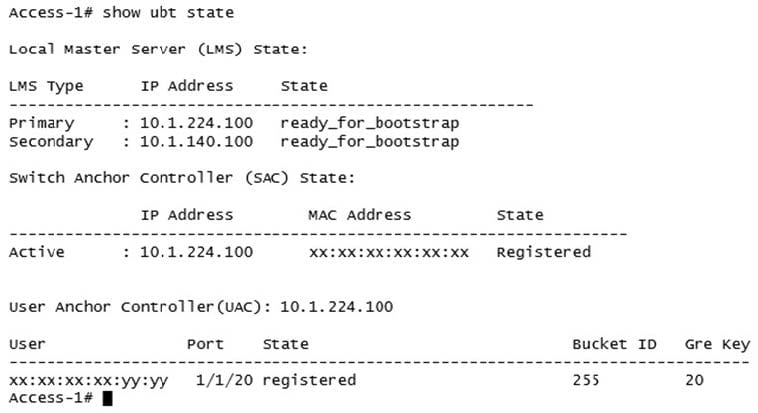

Refer to the exhibits.

A network administrator deploys User Based Tunneling (UBT) in a corporate network to unify the security policies enforcement. When users authenticate with 802.1X, ClearPass shows Accept results, and sends the Aruba-User-Role attribute as expected. However, the AOS-CX based switch does not seem to build the tunnel to the Mobility Controller (MC) for this user.

Why does the switch fail to run UBT for the user?

A. The switch has not fully associated to the MC.

B. ClearPass is sending the wrong Vendor ID.

C. The switch is not configured with the gateway-role.

D. ClearPass is sending the wrong VSA type.

E. The switch is not configured with the port-access role.

Refer to the exhibit.

After deploying several cluster pairs, the network administrator notices that all APs assigned to Cluster1 communicate with MC1 instead of being distributed between members of the cluster. Also, no IP addresses are shown under the Standby IP column.

What should the network administrator do to fix this situation?

A. Apply the same cluster profile to both members.

B. Enable Cluster AP load balancing.

C. Rename the cluster profile as "CLUSTER1".

D. Place MCs at the same hierarchical group level.
